Refurbished Truck Mounted Crane
>
|
|
| Place of Origin | China |
| Brand Name | XCMG |
| Certification | GS, RoHS, CE, ISO9001 |
| Model Number | QY130K |
The innovative jib system adopts embedded block, plug-in boom head and international advanced U section jib, which has excellent lifting performance and safe and reliable lifting work.
The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.
The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.
Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.
Product Info.
| Model NO. |
QY130K |
Shaft Number |
6 |
|
Wheel Base |
2610/2307mm |
Total Mass in Travel State |
62000kg |
|
Counterweight |
38T | Jib | 12~15m |
|
Transport Package |
Export Standard Package |
Specification |
13930*2780*3630mm |
|
Origin |
China |
HS Code |
87051091 |
Product Description
| Outline dimension | Overall length | mm | 14950 | |
| Overall width | mm | 3000 | ||
| Overall height | mm | 3950 | ||
| Axle base | Axle 1, Axle 2 | mm | 1420 | |
| Axle 2, Axle 3 | mm | 2420 | ||
| Axle 3, Axle 4 | mm | 1875 | ||
| Axle 4, Axle 5 | mm | 1350 | ||
| Axle 5, Axle 6 | mm | 1400 | ||
| Wheel base | mm | 2610/2307 | ||
| Mass | Total mass in travel state | kg | 62000 | |
| Axle load | Axle 1, Axle 2 | kg | 8800/8800 | |
| Axle 3, Axle 4 | kg | 9200/12700 | ||
| Axle 5, Axle 6 | kg | 12700/9800 | ||
| Power | Crane superstructure engine | Rated power | kw/(r/min) | 162/2100 |
| Rated torque | N.m/(r/min) | 854/1400 | ||
| Rated speed | r/min | 2100 | ||
| Crane carrier engine | Rated power | kw/(r/min) | 390/1800 | |
| Rated torque | N.m/(r/min) | 2400/1080 | ||
| Rated speed | r/min | 2000 | ||

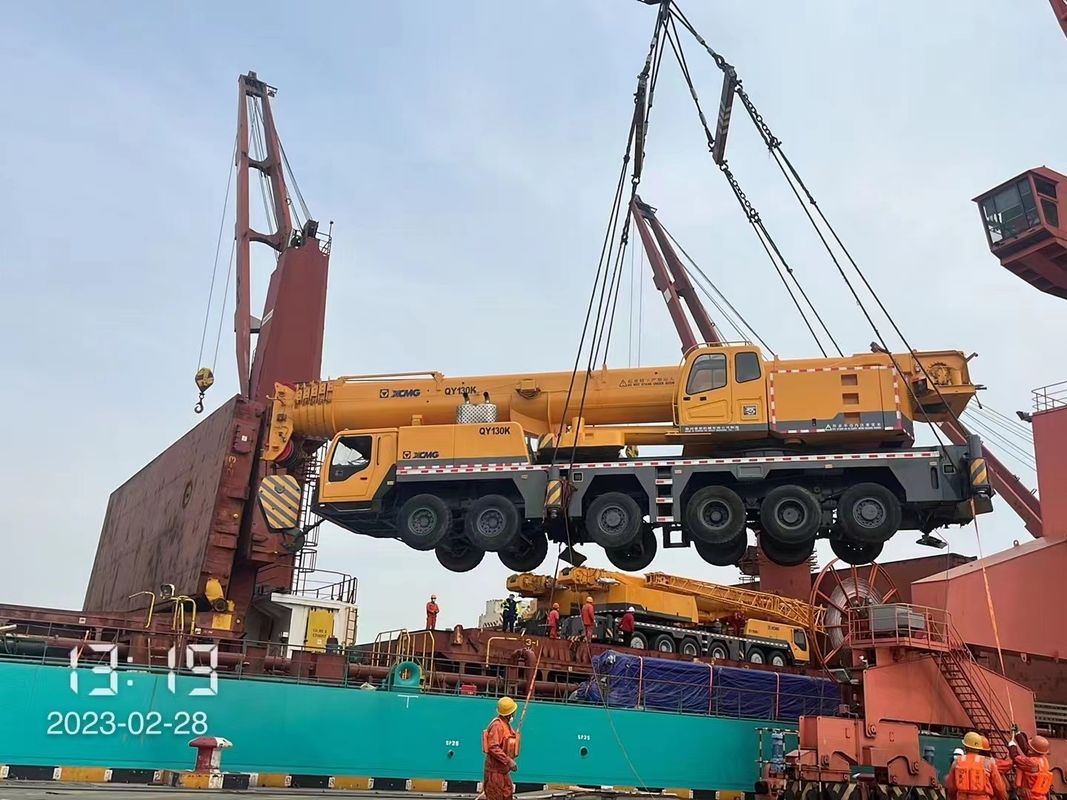

Product Show
